Generac

SKU: G700020

Generac 13KVA Home Generator - 1 Phase with Type A Kit

(No reviews yet) Write a Review
UPC:
8.18E+11
Shipping:
Calculated at Checkout
$8,898
Adding to cart… The item has been added
1300 998 647

Product Information

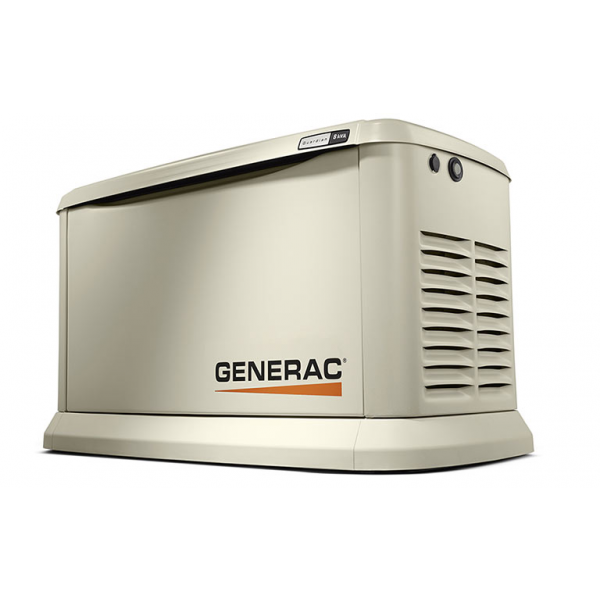

Generac 13kva Gas Standby Generator – Air Cooled – Single Phase

These are the Newest version of the Generac Generators - Type A!

(In WA this unit is a type B appliance. Check with local authorities for relevant standards.)

Cost of the Generator is a bit more, but you save thousands on installing the Generator and finding plumbers will be a lot easier.

The Generac home generator range are a cost-effective, efficient and reliable solution to all your home or small business backup needs. Generac home generators offer peace of mind knowing they will back up your entire home, or most essential items, in the case of a power outage or electrical emergency.

This 13 KVA Generac Single Phase generator is purpose built and designed to handle the rigors of extended run times in high temperature and extreme operating conditions. Providing standby, home back-up or temporary power when you need it.

View the Spec Sheet (pdf.)

GENERATOR SPECIFICATIONS

Model

  • KVA: 13
  • Rated Maximum Continuous Power Capacity (LP): 13,000 VA*
  • Rated Maximum Continuous Power Capacity (NG): 13,000 VA*
  • Rated Voltage: 220 V
  • Rated Maximum Continuous Load Current 220 Volts (LP/NG): 59.1/59.1
  • Main Line Circuit Breaker: 63 amp
  • Number of phase: 1
  • Number of Rotor Poles: 2
  • Rated AC Frequency: 50Hz
  • Power Factor: 1
  • Battery Requirements (Not Included): 12 Volts, Group 26R 540 CCA Minimum or Group 35AGM 650 CCA Minimum

Engine

  • Engine: GENERAC G-FORCE 1000 SERIES
  • Number of Cylinders: 2
  • Displacement: 999cc
  • Cylinder Block: Aluminium w/ Cast Iron Sleeve
  • Valve Arrangement: Overhead Valve
  • Ignition System: Solid-state w/ Magento
  • Governor System: Electronic
  • Compression Ratio: 9.5:1
  • Starter: 12 VDC
  • Oil Capacity Including Filter: 1.9 qt/1.8 L
  • Operating rpm: 3,000
  • Fuel Consumption NG, metres cubed/hr: Full Load 6.54 - Half Load 4.25
  • Fuel Consumption LPG, litres/hr: Full Load 8.32 – Half Load 5.29

Dimensions & Weight

  • Unit Weight (lb/kg): 425/193
  • Dimensions (L x W x H) in/mm: 48 x 25 x 29/1218 x 638 x 732

Sound Level

  • Sound Output in dB (A) at 23ft (7m) with generator operating at normal load: 64
  • Sound Output in dB (A) at 23ft (7m) with generator exercising five minutes at low speed: 55

Warranty:

Covered by Generac 5-year limited warranty.

Delivery

We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Melbourne or Perth.

CONTACT US

It's important to ensure you select the right home generator for your needs. So, if you have any questions or need some help please do not hesitate to call us on 1300 998 647
